Productinformatie
-
Technische gegevens

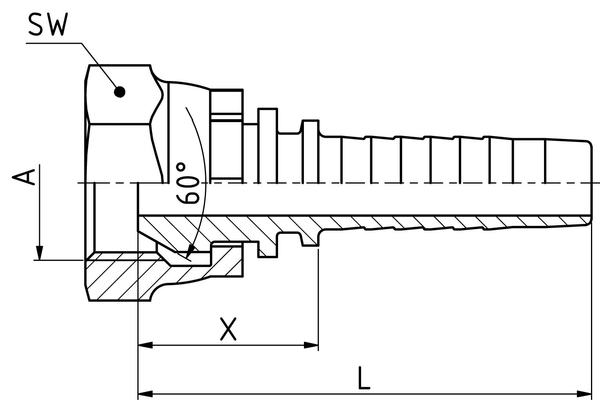

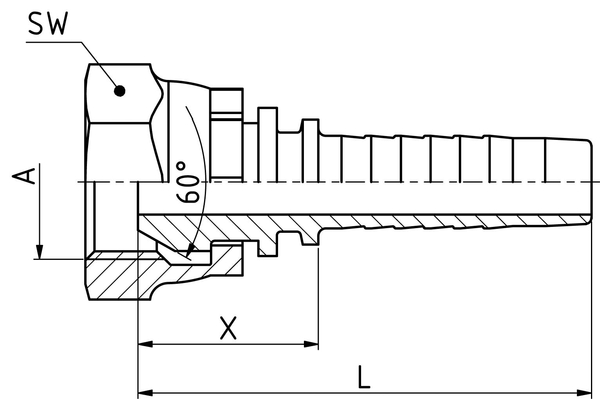

DN: 25 Size: 16 Inch: 1" Schroefdraad + norm: BSP-afdichtkop, 60°-conus met wartel, met BSP-schroefdraad d [mm]: 20,0 T: 1-11 E [mm]: 38 C [mm]: 26,0 L [mm]: 79,5 Aansluitingaanduiding Indunorm: BF Aansluitingmethode: DKR Armaturenserie: VC Materiaal: Automatenstaal Oppervlak: CrIII Uitvoering: 0°
